WL-OTT is a 4K ultra-clear set-top box pre-installed with Android. It can be used together with the DMM (Digital Media Master) streaming Media server by our company, or it can be used as a decoder alone. The product supports 4K (60p), H.265, H.264, MPEG-2 and other formats, HD / SD decoding. FAST-Ethernet wired port and WIFI. The OTT uses Hisilicon 3798M V200 chip design for streaming media reception and decoder. It is pre-installed with android system and can be pre-installed with prevail DMM APK (which shall be compatible with our DMM server).
l Quad-core 64-bit high-performance ARM cortex A53
l 1G SDRAM+4G flash
l Complies with MPEG standard
l Supports multiple video resolutions and video formats
l Supports multiple audio decoding
l Support wired, wireless reception
l Support boot screen customization
l Support IPTV APK startup screen customization
l Support live and VOD
|
Parameter |
Description |
Remark |
|
Software and hardware |
||
|
Operation system |
Android 7.0 |
|
|
CPU |
Hisilicon 3798M V200 Quad-core 64-bit high-performance ARM cortex A53 |
15,000 DMIPS |
|
SDRAM |
DDR3 1GB |
|
|
Flash |
4GB EMMC |
eMMC flash |
|
Wifi |
2.4Ghz |
802.11b/g |
|
Power supply |
DC 12V/1.5A |
|
|

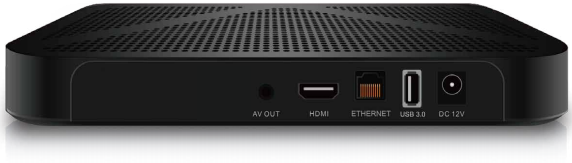

interface |
HDMI 2.0a output |
HDCP 1.4 and 2.0, support maximum 4K@60Hz |
|
USB port |
1*high speed USB 3.0 |
|
|
AV |
1*AV |
|
|
Smart Card |
1*Smart cards slot |
|
|
Network |
1*RJ45 |
|
|
Power supply |
1*DC jack |
|
|
Media parameters |
||
|
Decoder formats |
4K,H.265,MPEG1/2/4,H.264, HD AVC/VC-1, RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10 |
|
|
Video formats |
4K@30fps, H.265, AVI, H.264, VC-1, MPEG-2, MPEG-4, DIVD/DIVX, Real8/9/10, RM,RMVB, PMP, FLV, MP4, M4V, VOB, WMV, 3GP, MKV |
|
|
Audio formats |
MP1, MP2, MP3, WMA, OGG, AAC, M4A, FLAC, APE, AMR, RA, WAV |
|
|
Photo formats |
JPEG/BMP/GIF/PNG/TIFF |
|
|
Machine |
||
|
Machine size |
175*90*30 mm |
|
|
Machine weight |
300g |
|
