encoder is compliance to DVB standard broadcast real-time video and audio MPEG-2/H.264 compression equipment with both DVB-ASI and GbE TS over IP outputs. It's adopts new type video, audio coding calculation and multiplexer technology, it can compress analog/digital audio and video signal and with high quality encoding and cost-effective. It supports analog composite video and dual audio channels. The encoder can real-time coding and multiplexing of audio signal. It's fully compliant to MPEG-2/H.264 standard and with good compatibility.
l Support MPEG-2/H.264 SD
l Up to 8 CVBS video and 16 two-channel audio inputs
l Input video style adaptive, adjustable rate output
l Two DVB-ASI outputs, one ASI input
l IP module(option) up to 32 programs with SPTS mode
l Zero jitter on TS over IP output, support MPTS or SPTS
l Local network management and online update
l 10/100M Base-Tx management interface
l Support brightness, color saturation, contrast and color adjustment
|
Parameter |
Symbol |
Description |
Unit |
Remark |
|
Mechanical dimension |
||||
|
Height |
H |
42 |
mm |
About 1U |
|
Width |
W |
434 |
mm |
About 17” |
|
Depth |
D |
400 |
mm |
|
|

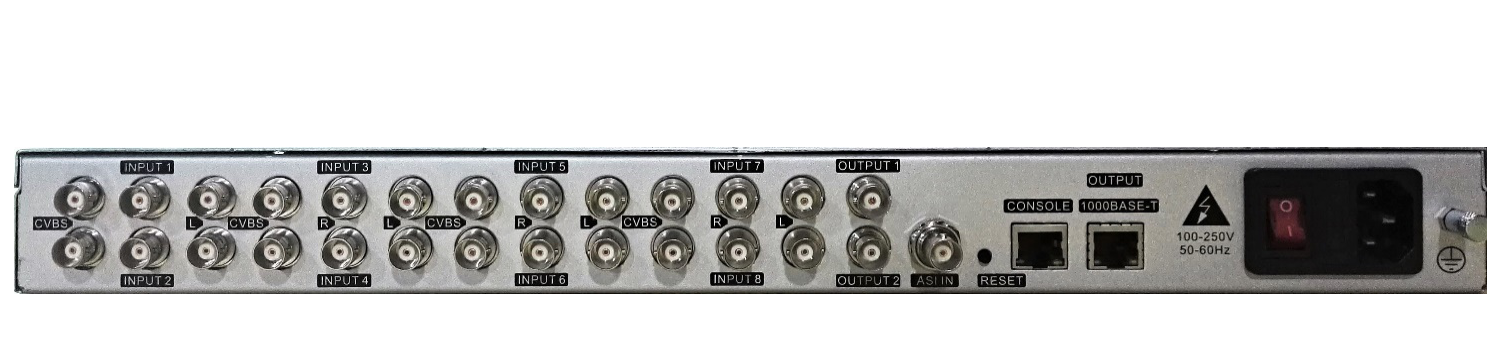

Input/Output Interface |
||||
|
Video input |
- |
8 groups of CVBS with BNC-75Ω |
|
|
|
Audio input |
- |
8 groups of two-channel audio with BNC-75Ω |
|
|
|
ASI input |
|
ASI with BNC-75Ω |
|
|
|
ASI output |
- |
Dual ASI with BNC-75Ω |
|
|
|
ASI rate |
|
108 |
Mbps |
|
|
IP Output |
||||
|
Type |
|
10/100/1000BASE-T |
|
Auto-Negotiation |
|
Connector |
|
RJ45 |
|
|
|
Compatible protocol |
|
IP V4, UDP, ARP |
|
Support Multicast/ Unicast |
|
Encoding Parameters |
||||
|
Video Encoding |
- |
4:2:0 MP@ML (MPEG-2) or H.264 SD |
|
|
|
Audio Sampling Freq |
Fs |
32,44.1,48 |
KHz |
|
|
Audio Rate |
Ra |
64,128,256,384 |
Kbps |
|
|
Audio Performance |
- |
MPEG-1 Layer 1/2, CD quality |
|
|
|
Resolution |
- |
Compliant to CCIR601 PAL:720×576 and below compatible NTSC:720×480 and below compatible |
|
|
|
Output rate(each channel) |
Rv |
1~15 |
Mbps |
Adjustable |
