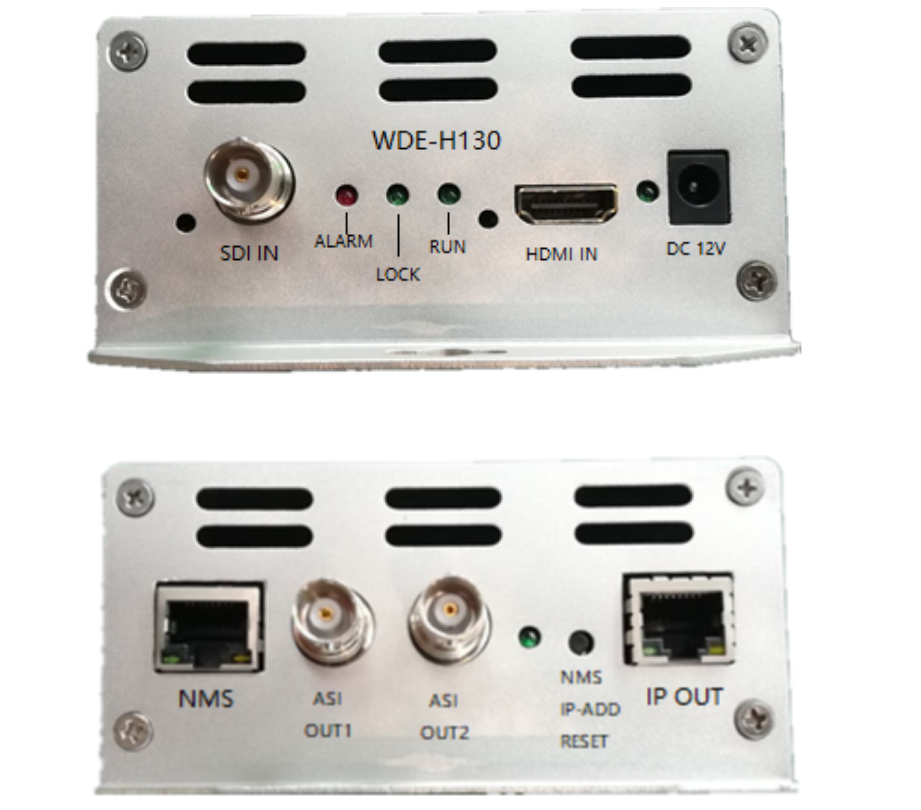

WDE-H130 is a new generation professional digital TV Encoder which supports up to 1920x1080i video format(H264) and equipped with GbE TS over IP output. It supports encoding. WDE-H130 is designed and manufactured by Hangzhou Prevail Company according to ISO/ICE 14496-10, ITU-T H.264, IEEE802.3 and related international standards. It is a high quality and cost-effective product for MPEG-2/H.264/AVC HD/SD video/audio encoding application. WDE-H130 supports SDI, HDMI video input formats, one GbE port of TS over IP. The user can manage the device easily through the 100M Ethernet port.
l Support H.264 AVC High Profile Level4.2
l Support video encoding: MPEG-2 SD and H.264 SD/HD.
l Support audio encoding for MPEG-1 audio layer2 MPEG-2/4 AAC LC
l Support SDI/HDMI video inputting interfaces
l Support CBR/VBR.
l Zero jitter on TS over IP
l Network management(web)
l DC power supply 5~12V(≤10W)
|
Parameter |
Symbol |
Description |
Unit |
Remark |
|
Mechanical dimension |
||||
|
Height |
H |
53 |
mm |
|
|
Width |
W |
107 |
mm |
|
|
Depth |
D |
171 |
mm |
|
|
Input interface |
||||
|
video/audio type |
|
SDI, HDMI |
|
|
|
IP Output(Option) |
||||
|
Type |
|
100/1000BASE-T |
|
Auto-Negotiation |
|
Connector |
|
RJ45 |
|
|
|
Compatible protocol |
|
IPv4, UDP, ARP |
|
Support Multicast/ Unicast |
|
Transmission format |
|
TS over IP |
|
1~7 TS packet |
|
Encoding Parameters |
||||
|
Video Encoding |
|
H.264 SD/HD MPEG-2 SD |
|
MP@ML(MPEG-2) |
|
Audio Performance |
- |
MPEG-1 audio layer 2 |
|
|
|
Resolution |
- |
Input: 1920X1080_50/60i 1280X720_50/60P 720X480_59.94i 720X576_50i Output: 1920X1080_50/60i (H.264) 1280X720_50/60P(H.264) 720X480_59.94i 720X576_50i |
|
|
|
Output rate |
Rv |
MPEG-2 up to 14M, H.264 up to 15M |
Mbps |
Adjustable |
|
Audio Sampling Freq |
Fs |
48,44.1,32 |
KHz |
|
|
Audio rate |
Ra |
64,80,96,128,192,256,384 |
Kbps |
|
