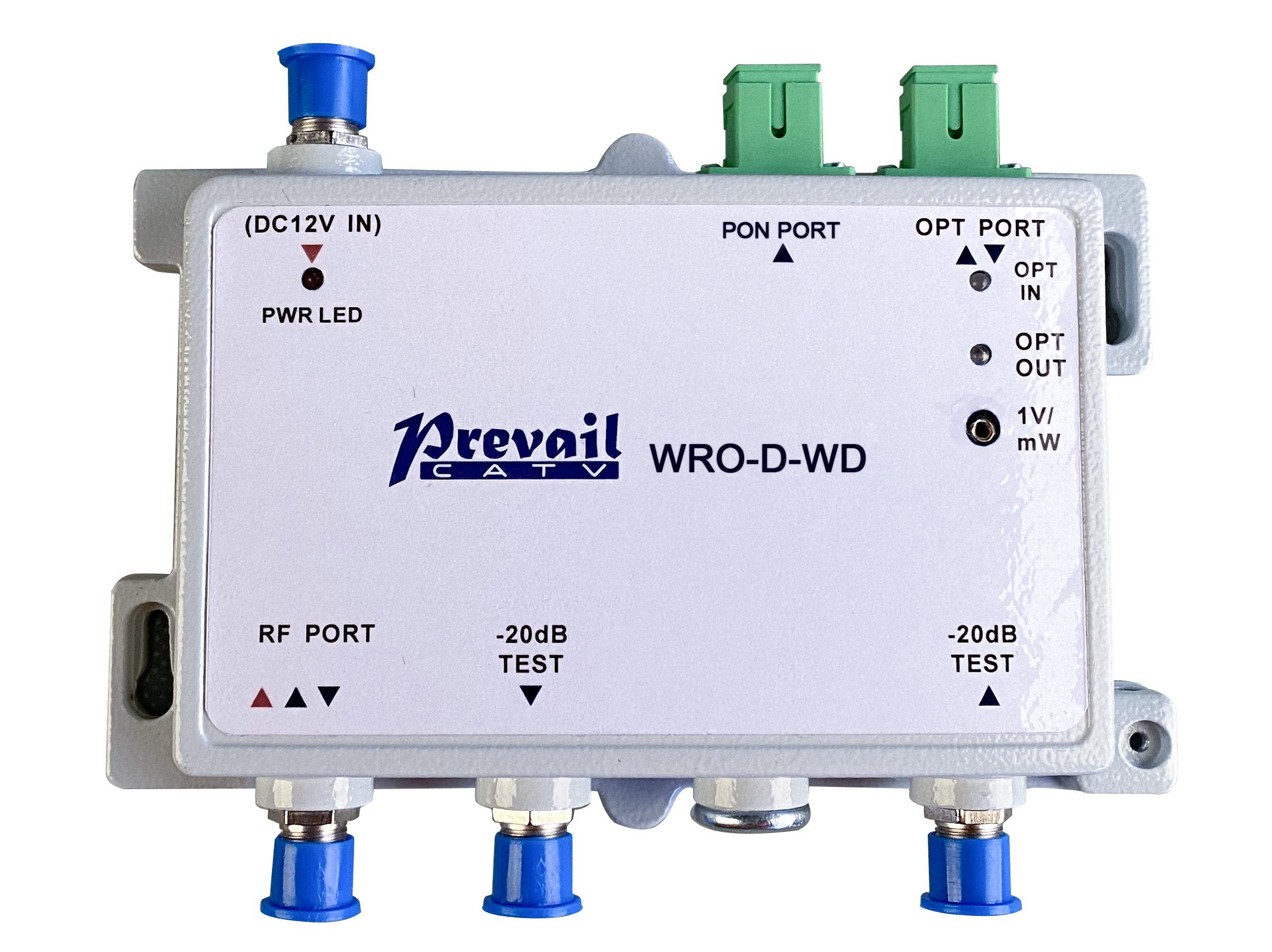

Compact optical node, designed for deep fiber networks. Adopt WDM technology, single-fiber dual-wave, with PON loop-out, downstream receiving 1550nm, upstream optical transmission multi-wavelength optional. Using high-performance GaAs amplification module, 1.2GHZ bandwidth, optical AGC, output level 90dBuV. The upstream uses RFOG technology, which can effectively avoid the reverse convergence noise of the CMTS system. Burst and continuous modes are optional. RFOG meets the SCTE-174-2010 standard requirements.
※ Bandwidth up to 1.2 GHz, DOCSIS 3.1 standard comp.
※ Burst Transmitter, SCTE174 compliant .
※ Optical AGC functionality
※ GaAs technology,Output level 80/90dBuV optional.
※ LED indicators for power, optical input and transmit status.
※ Single Fiber WDM technology.
※ Compatible with PON transmission modes.
※ Low power consumption.
※ Flexible powering at local or remote sites.
|
|
Item |
Parameter |
remarks |
|
Optical |
fiber |
Single mode |
|
|
connector |
SC/APC、SC/UPC |
|
|
|
Forward receive Wavelength |
1540～1565nm or Optional
|
|
|
|
Return laser Wavelength |
1310nm or Optional |
|
|
|
PON Wavelength |
1310/1490nm or Optional |
|
|
|
return loss |
＞45dB |
|
|
|
insertion loss |
≤0.7dB |
WDM |
|
|
Forward Path |
AGC range |
-8～0 dBm |
|
|
Equivalent Input Noise Current |
≤5 pA/√Hz |
|
|
|
RF Bandwidth
|
54/85/105/258 ～1218 MHZ |
|
|
|
RF Flatness
|
±1 dB |
|
|
|
RF Output Slope
|
3 dB |
|
|
|
RF Return Loss
|
≥18dB @40MHZ（-1.5 dB/octave） |
|
|
|
RF Output Level |
80 dBuV |
CENELEC 42 1218MHz. 3.5% OMI / CH， -8dBm receive |
|
|
CSO |
＞64 dB |
||
|
CTB |
＞62 dB |
||
|
Output test point |
-20±1 dB |
|
|
|
Return Path |
Laser |
DFB |
|
|
Laser on Output Power
|
3 ± 0.5 dBm |
|
|
|
Laser off Output Power
|
＜-30 dBm |
|
|
|
RF Bandwidth
|
5～42/65/85/204 MHZ |
|
|
|
RF Flatness |
±1 dB |
|
|
|
RF Return Loss
|
≥18 dB |
|
|
|
Laser rise/fall time
|
＜1 / ＜1 |
SCTE_174_2010 7.1.3 FIGURE 4 |
|
|
Laser Turn On RF Level
|
67 dBuV |
||
|
Laser Turn Off RF Level
|
58 dBuV |
||
|
NPR / Dynamic range
|
≥15dB @35 dB |
-10dBm receive |
|
|
OTHERS
|
Input Voltage Range
|
12VDC |
external power supply 230VAC/50HZ |
|
Power Consumption
|
＜4W |
|
|
|
Protection class
|
IP42 |
|
|
|
RF connectors type
|
F female
|
|
|
|
Surge
|
>4kV (EN61000-4-5, 1,2/50 µs pulse) |
RF ports
|
|
|
ESD |
>2kV |
|
|
|
Operating Temperature
|
-20～55 ℃ |
|
|
|
Storage Temperature
|
-40～65 ℃ |
|
|
|
ROHS |
ROHS 2 |
|
|
|
|
Dimensions (W x L x H)
|
154 x 121.2 x 36.5 mm |
|
|
|
Weight
|
0.5 Kg
|
|
